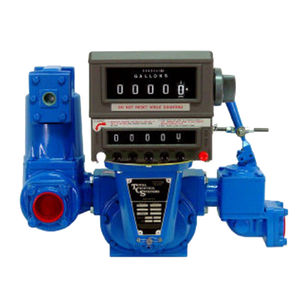

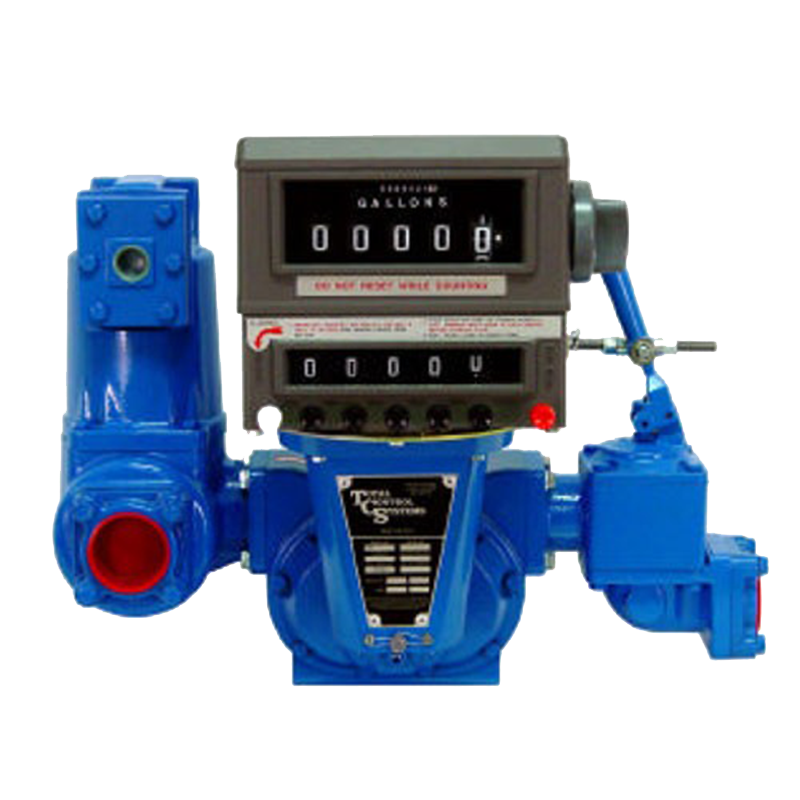

Total Control Systems (TCS) 700 Series Rotary Flow Meter Range

Total Control Systems (TCS) 700 Series Rotary Flow Meter Range

	DATA SHEET
	ENGINEERING MANUAL
	OPERATIONS MANUAL - 700-15
	OPERATIONS MANUAL - 700-20/25
	OPERATIONS MANUAL - 700-30/35
	OPERATIONS MANUAL - 700-40/45
	OPERATIONS MANUAL - 700-60/65

• suitable for use with Diesel, Petrol (Gasoline), Aviation Fuels (AVGAS and JET-A1), Chemicals, Adblue, Food Products

Overview TCS 700 Series

The TCS 700 rotary flow meter combines excellent accuracy with low pressure drop.  The TCS 700 rotary flow meter has a compact size and lightweight design that offers minimal maintenance and long service life.  This meter is built with advanced materials of construction for a broad range of measurement applications and is accompanied by a full selection of accessories and electronic registration.

Features TCS 700 Series

The TCS 700 series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact within the chamber, eliminates any deterioration in accuracy and provides a long service life.

The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, giving a consistent and superior measurement of accuracy.

Specifications TCS 700 Series

• Flow: Capable of up to 1,000 GPM (3,785 LPM);  Bi-directional Flow
• Linear Accuracy: Capable of ± 0.15% of over the full flow range
• Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
• Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
• Temperature: - 40 to 160°F (- 40 to 71°C)
• Approvals: Meets a wide range of weights and measures requirements. (Contact factory for information on specific approvals.)

Meter Types TCS 700 Series

700 AF - All Ferrous

• Materials of Construction: Ductile Iron, Stainless Steel, Carbon Graphite, Ni-Resist, PTFE
• For metering Pesticides, Fertilizers, Food Processing Liquids, Industrial Chemicals, Solvents, Paints, Inks, Alcohols and many other liquids; such as Liquid Sugars, Liquid Feeds, MEK, Ethanol, Corn Syrup, Soy Bean Oil, Shortenings, Latex Products, Adhesive

700 IC - Industrial Products Carbon Bearings

• Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
• For metering Alcohols, Chemicals, Solvents, Water and many other Non-Lubricating Liquids such as Acetones, Ethanol, Naphta, Xylene, MEK, Toluene, Resins, etc.

700 IP - Industrial Products Stainless Steel Bearings

• Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
• For Food Processing, Chemicals, General Solvents and many other liquids such as Corn Syrup, Soy Bean Oil, Liquid Sugars, Shortenings, Latex Products, Adhesives, etc.

700 LP - Liquefied Petroleum Gas

• Materials of Construction: Anodized Aluminum, Stainless Steel, Ni-Resist, Buna
• For metering Liquefied Petroleum Gas (LPG) and NH3

700 SP - Standard Petroleum Meters

• Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, FKM
• For metering refined petroleum products such as Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

700 SPA - Standard Petroleum Aviation

• Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM
• For metering refined petroleum products such as Aviation Gasoline, Jet Fuels, Ethanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

700 SPD - Standard Petroleum Ductile Nodular Iron

• Materials of Construction: Ductile Iron, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM, Simriz*
• For metering refined petroleum products such as Ethanol, Methanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Aviation Gasoline, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

700 SS - Stainless Steel

• Materials of Construction: 316 Stainless Steel, Carbon Graphite, Treated Stainless Steel, Simriz*, PTFE
• For metering the same products as the SP, SPA, SPD and AF meter types, but includes special handling liquids; such as Acids, Anti-Icing Fluids, Vinegar, Fruit Juices, Corn Syrup, Micro-Nutrients, etc.

700 SSD - Stainless Steel DEF

• Materials of Construction: Stainless Steel, Treated Stainless Steel, Ryton, EPDM
• For metering Diesel Exhaust Fluid (DEF), AdBlue, ARLA and AUS32.

Meter Sizes TCS 700 Series

TCS 700-15

• Meter Types: IC, IP, SP, SPA
• Flange Connections: 1 1/2” NPT Flange; 1” & 2” Options
• The 700 1.5" rotary flow meter is engineered to meter liquid at up to 60 GPM (227 LPM).

TCS 700-20

• Meter Types: AF, IC, IP, LP, SP, SPA, SPD, SS, SSD
• Flange Connections: 2” NPT Flange; 1 1/2” Option
• The 700 2" rotary flow meter is engineered to meter liquid at up to 100 GPM (380 LPM).

TCS 700-25

• Meter Types: SPA, SPD
• Flange Connections: 2” NPT Flange
• The 700 2" rotary flow meter is engineered to meter liquid at up 150 GPM (567 LPM).

TCS 700-30

• Meter Types: AF, IC, IP, SP, SPA, SPD
• Flange Connections: 3” NPT Flange; 2” Option
• The 700 3" rotary flow meter is engineered to meter liquid at up to 200 GPM (760 LPM).

TCS 700-35

• Meter Types: SPA, SPD
• Flange Connections: 3” NPT Flange
• The 700 3" rotary flow meter is engineered to meter liquid at up to 300 GPM (1,135 LPM).

TCS 700-40

• Meter Types: AF, IC, IP, SP, SPA, SPD
• Flange Connections: 4” NPT Flange; 3” Option
• The 700 4" rotary flow meter is engineered to meter liquid at up to 500 GPM (1,893 LPM).

TCS 700-45

• Meter Types: SPA, SPD
• Flange Connections: 4” NPT Flange
• The 700 4" rotary flow meter is engineered to meter liquid at up to 600 GPM (2,271 LPM).

TCS 700-60

• Meter Types: SPA
• Flange Connections: 6” ANSI Flange
• The 700 6" rotary flow meter is engineered to meter liquid at up to 800 GPM (3,040 LPM).

TCS 700-65

• Meter Types: SPA
• Flange Connections: 6” ANSI Flange
• The 700 6" rotary flow meter is engineered to meter liquid at up to 1,000 GPM (3,800 LPM).
