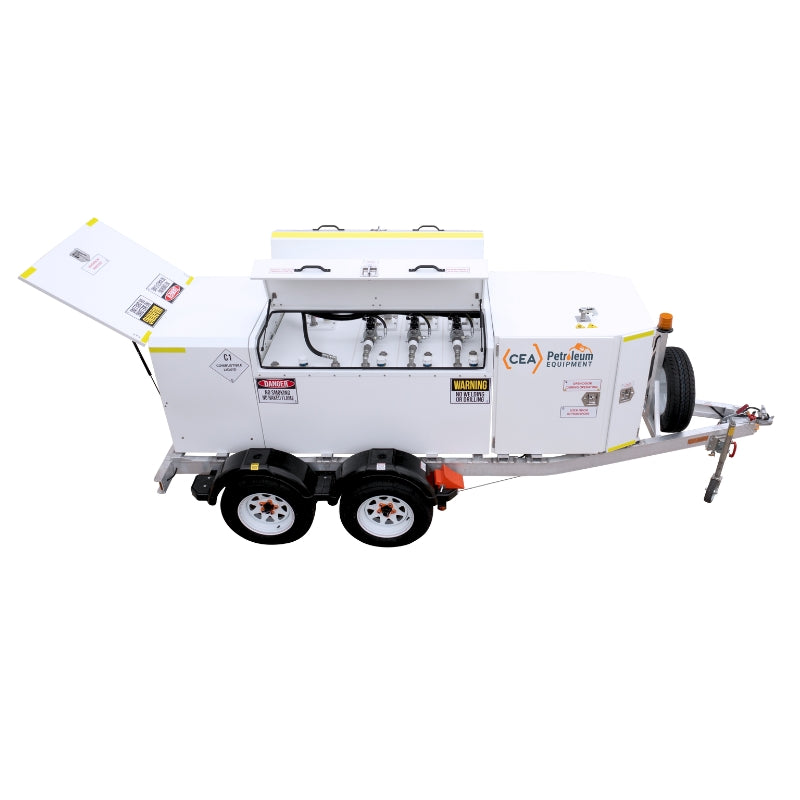

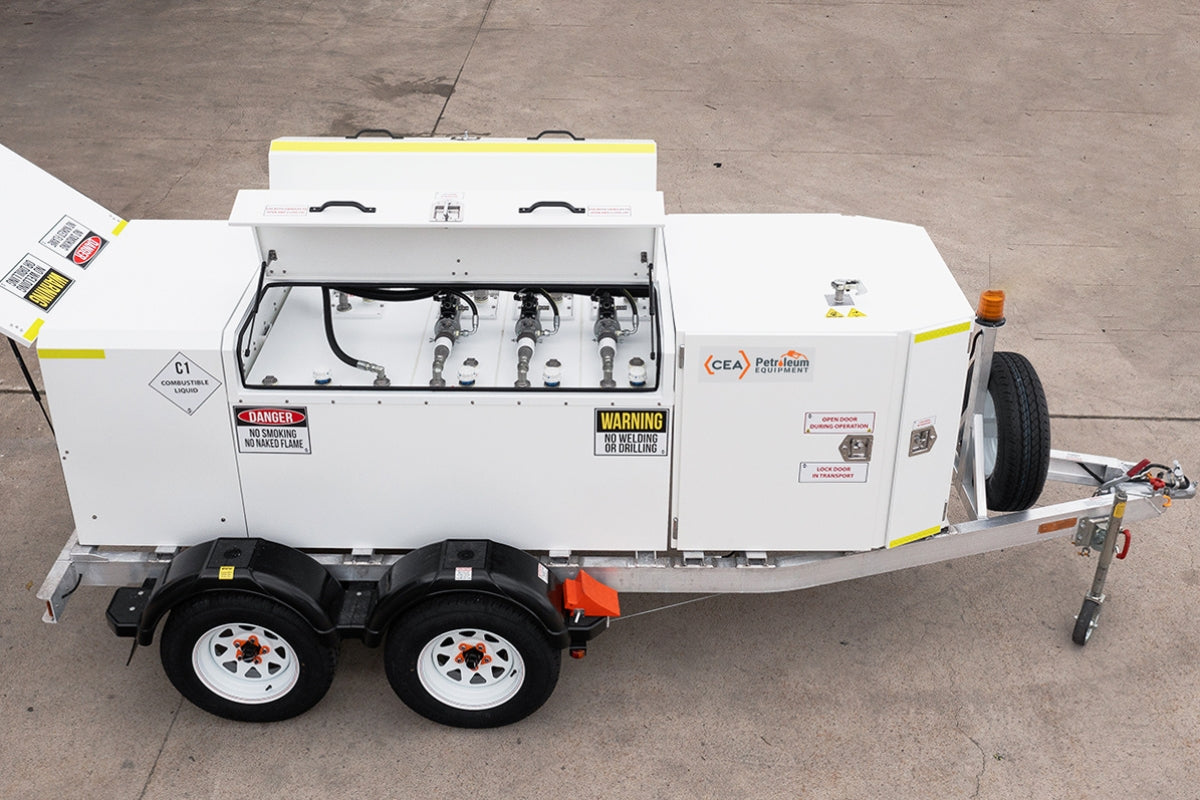

SERVICE TRAILER Self Bunded Low Profile Dual Axle
SERVICE TRAILER Self Bunded Low Profile Dual Axle
 |
DATA SHEET |
CEA Petroleum Equipment designs and manufactures a range of self bunded, low profile, service trailers. Based upon our popular range of self bunded fuel trailers, the CEA Service Trailer is the perfect support tool for your mobile equipment. CEA Service Trailers can be configured with a huge variety of equipment allowing you to customise the trailer to suit your specific site requirements.
The CEA Petroleum Equipment Self Bunded Service Trailer design stands up to the rough and tumble treatment afforded by customers in the Construction, Civil Contracting, Contract Mining, Mining, Oil and Gas, Drilling and Exploration industries.
Features
> Self Bunded - True self bunded, tank in tank design.
> Fully Approved - designed and approved to meet the requirements of AS1692, AS1940 and Australian Dangerous Goods Transport Regulations.

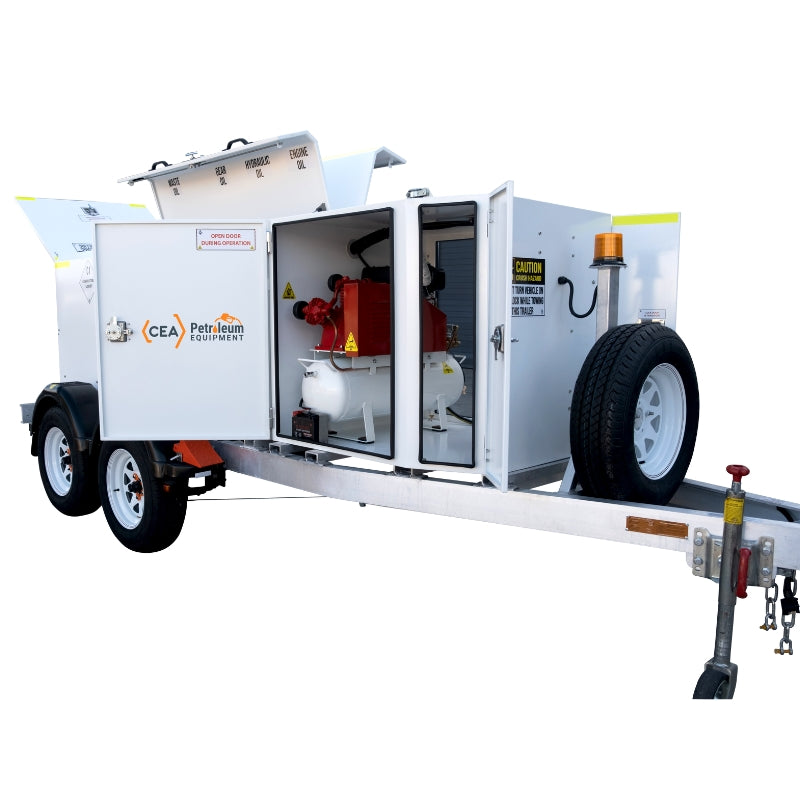

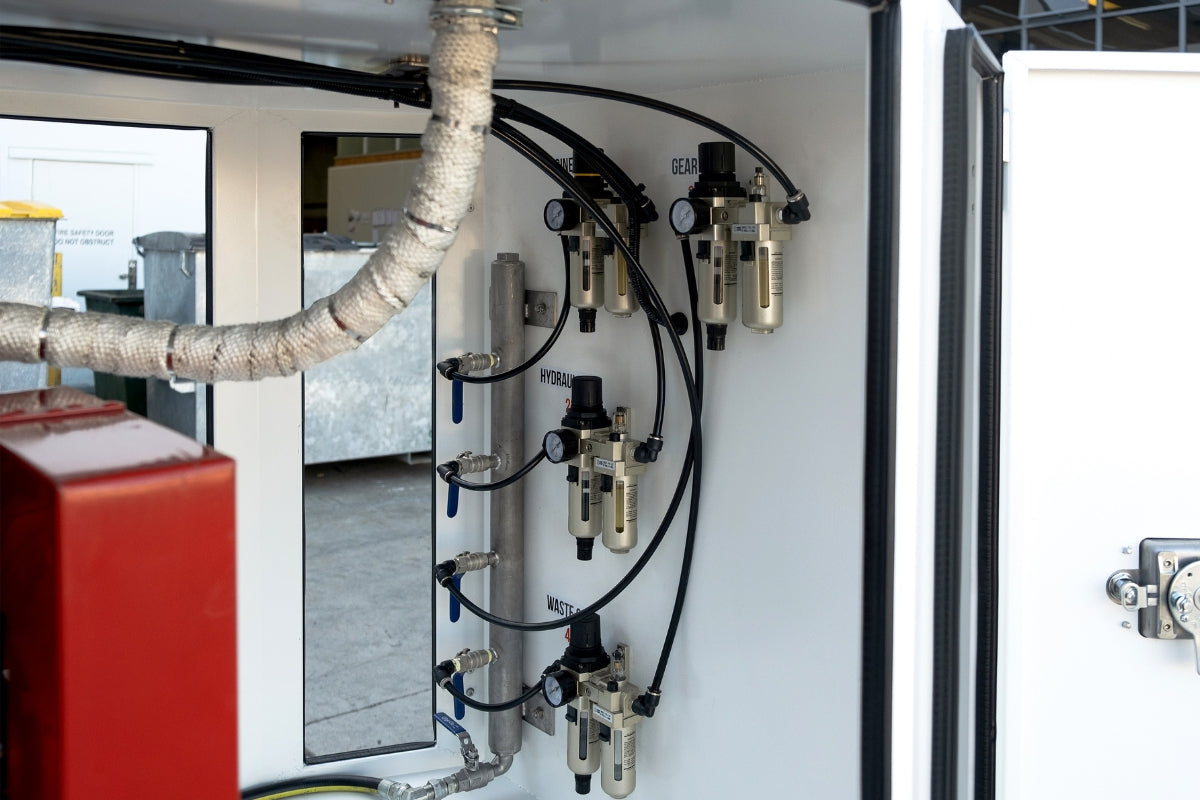

> On Board Compressor - Peerless or Compak electric start diesel driven air compressor. The onboard compressor provides power for the dispensing equipment, tyre inflation and to run site air tools as required. A solar panel is provided to recharge the battery powering the electric start for the diesel driven compressor
> Tried and Proven - since inception we have supplied more than 150 units into the Australia, and indeed global, markets.
> Heavy Duty - designed for on and off road application - beware of cheaper imitations !!
> Removable Inner Tank - The primary tank modules can be removed for maintenance
> Separate Tank and Trailer Chassis - the secret of our success, our tank body is protected from the twisting and rigours associated with off-road towing and use. Our chassis is designed to take the mechanical stresses and strains of in field use, protecting the tank body from the risks of cracking over time.

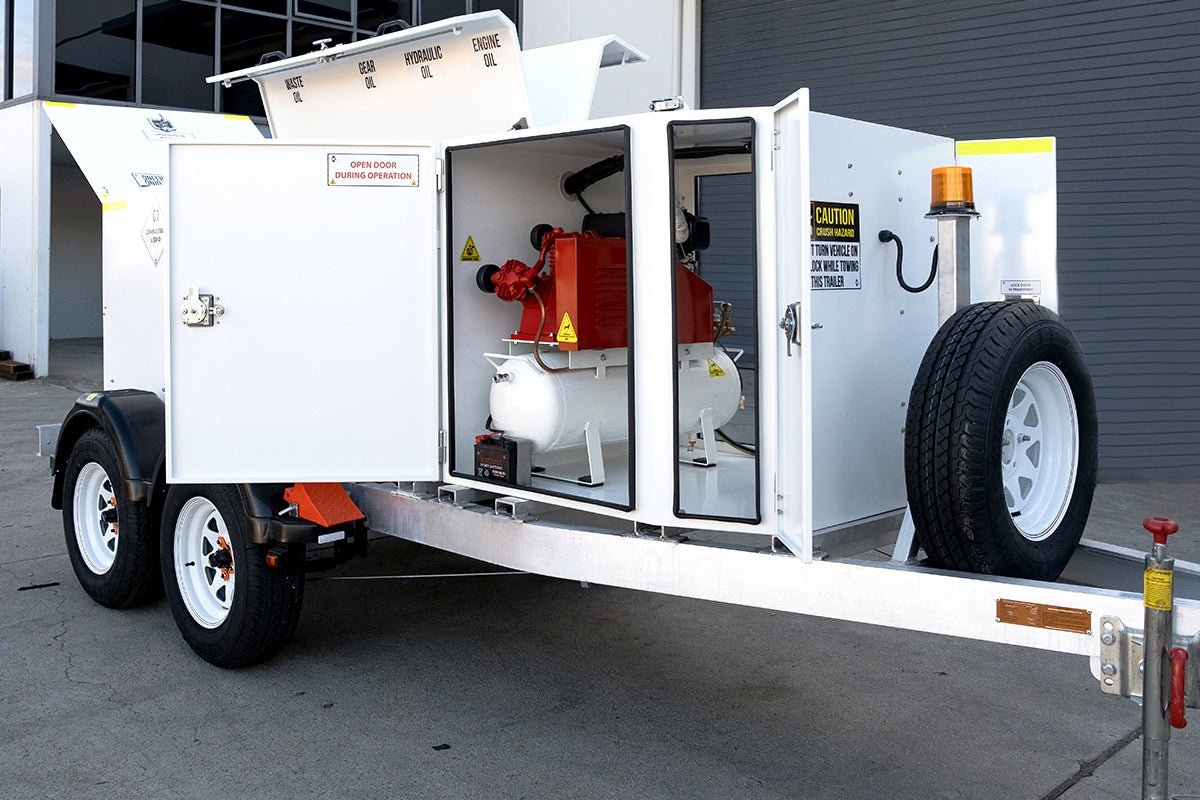

> Pump Bay - drawbar mounted, fully bunded, weatherproof, pump bay housing. The bunded pump bay has been designed large enough to store all your required dispensing equipment including prep pump strainer, pump, filter, meter, hose reel, nozzle, battery etc. We can engineer a range of pump bay solutions including side mounted with gull wing doors

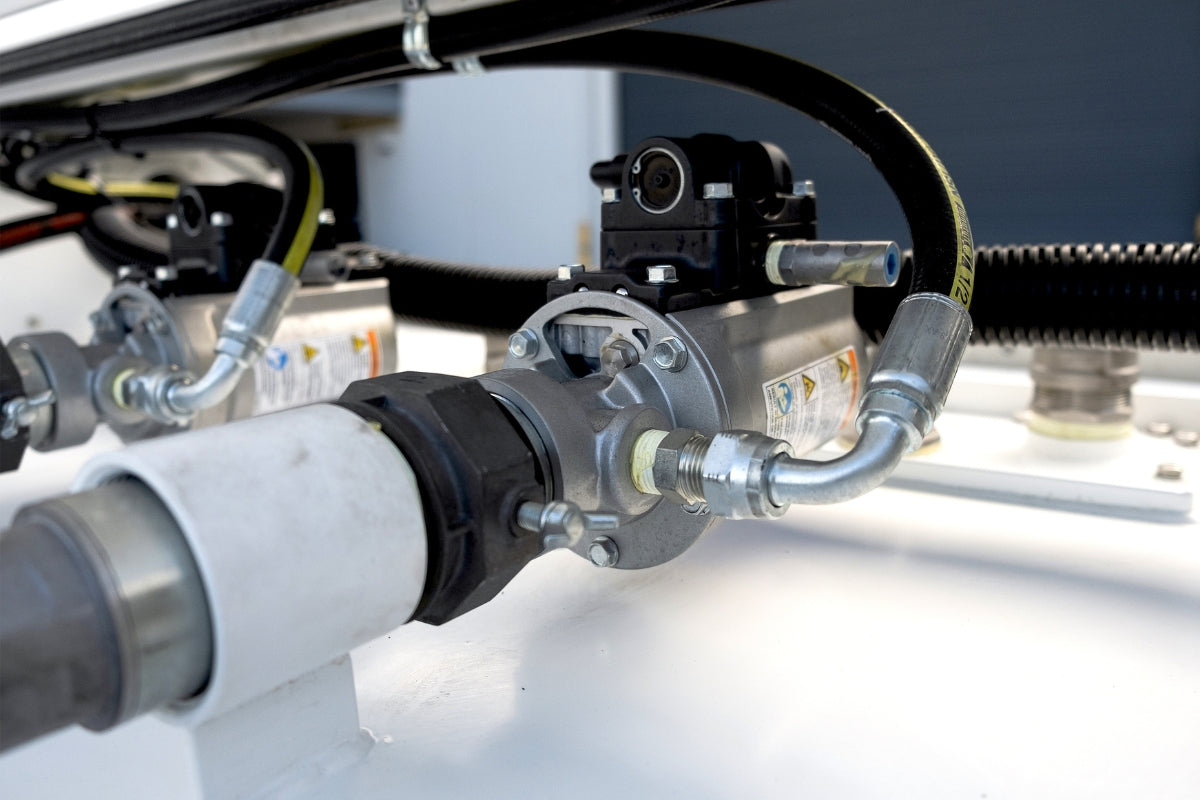

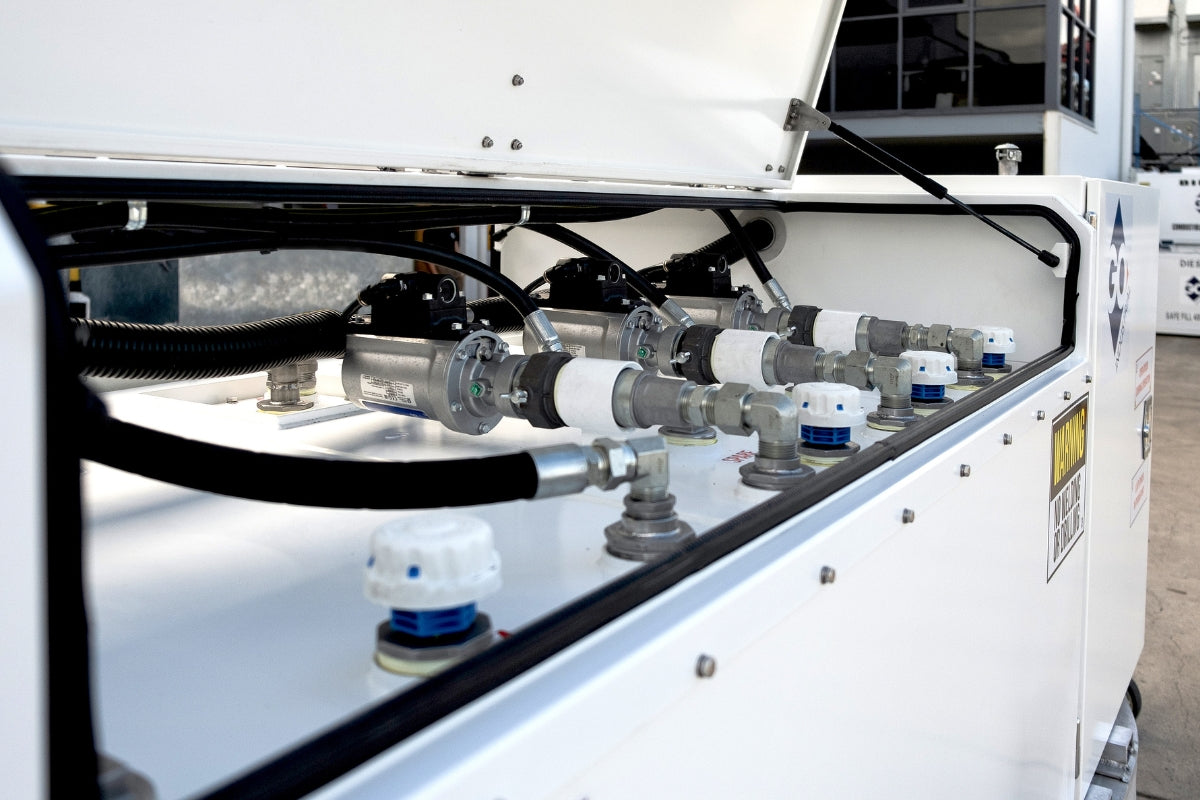

> Dispensing Options - common dispensing options include 12V Solar and Air Operated with an on board electric start, diesel driven, compressor.
> Baffled - our self bunded tank modules are fully baffled ensuing stability when towing loaded.
> Roof Mounting Options - The trailer roof allows for mounting of Spill Kit or Solar Panels
> Grease cartridge cupboard - weather/dust proof configured for storage of grease cartridges and air operated grease guns
> Roll Bars - Supplied fitted with Heavy Duty Stainless Steel Roll Bars

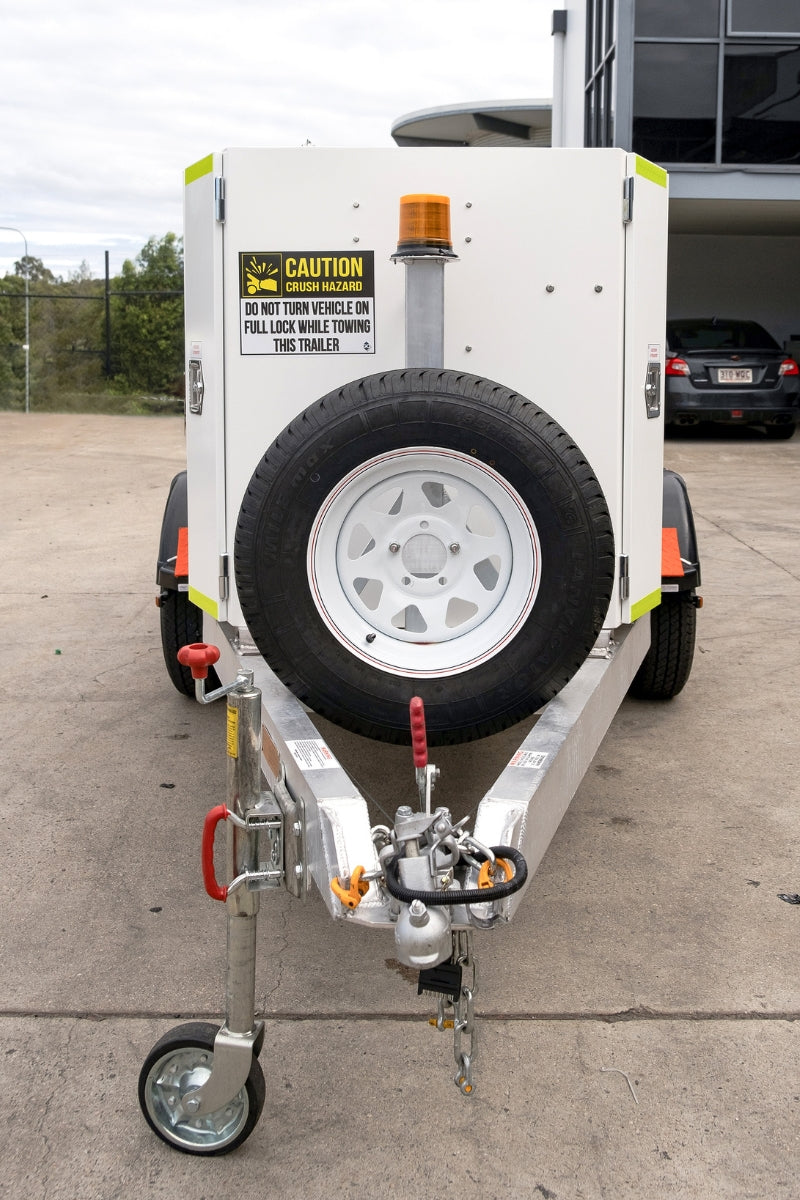

> Running Gear - new 16" Light Truck Tyres, Sunraysia Rims, Spare Tyre with Spare Tyre mounting assembly.

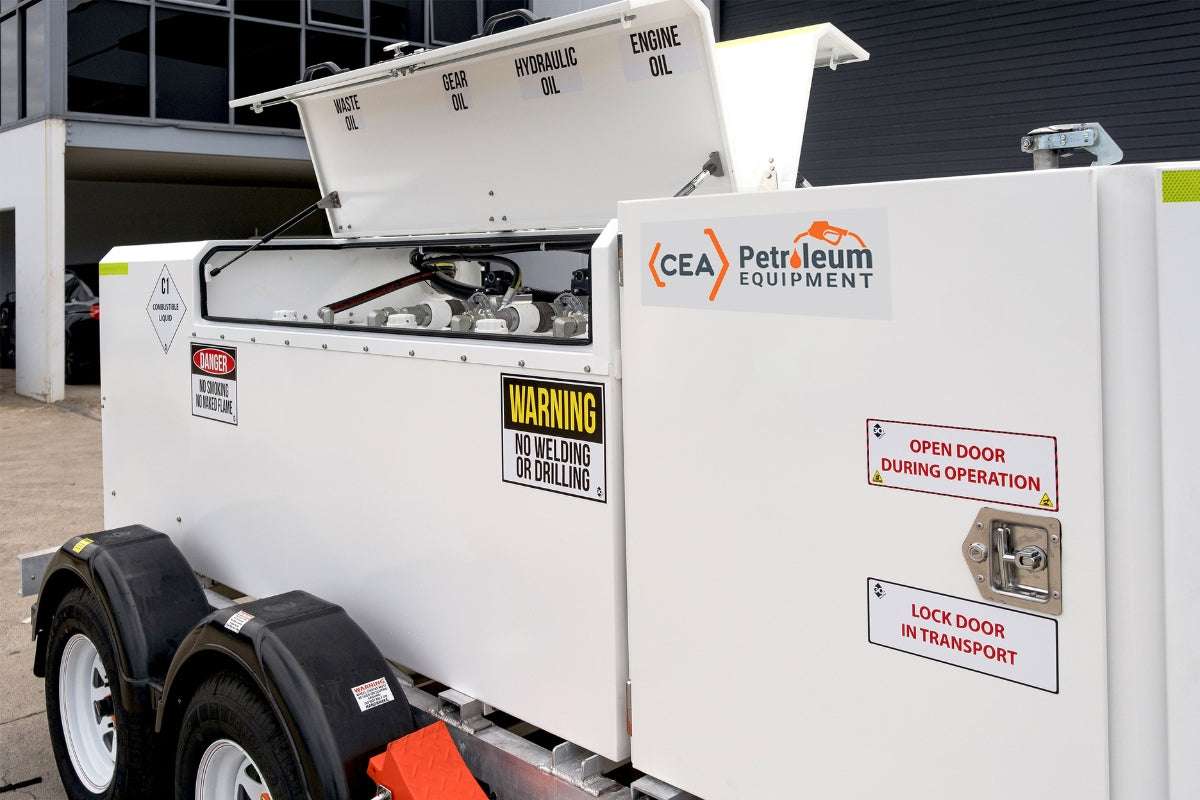

> Fully Lockable - all aspects of the trailer can be locked, discouraging access and ensuing theft of liquids or indeed equipment from the trailer
> Contents Management - Stauff porthole style level indicators to quickly ascertain the level of each tank compartment

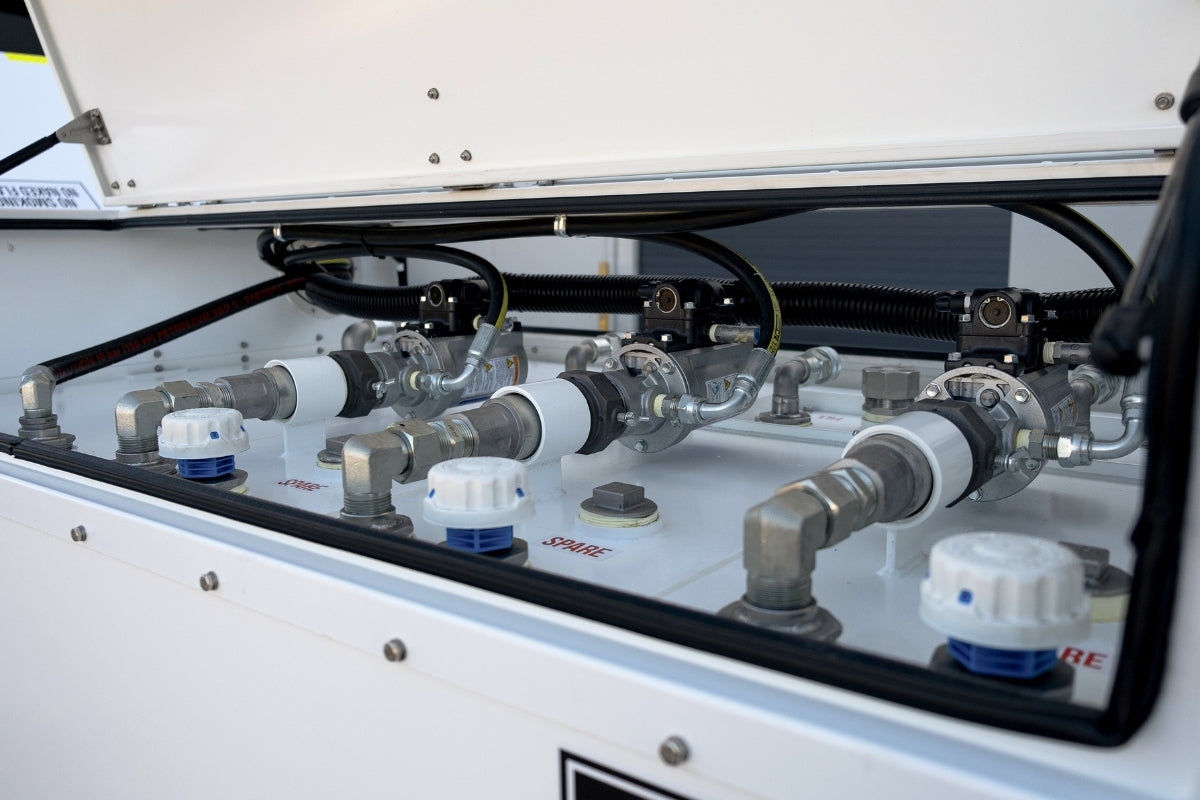

> Spare Ports - Numerous spare ports for connection of support equipment,
> Fill Tube - Anti static fill tube
> Bunded Fill Point - Fully bunded fill point to catch any drips and drops during refilling operations
> Removable Hatch - Removable hatch for access to the inside of the primary tank
> Flashing Light - 12V Amber Flashing Light with extension pole to warm passing vehicle traffic of servicing operations
> Easy to Tow - Low profile, aerodynamic style provides a low centre of gravity.
> Electric Braking System - each trailer is fully fitted with 10" electric brakes to comply with all Australia State and Territory requirements for braking of a trailer under 3 tonne

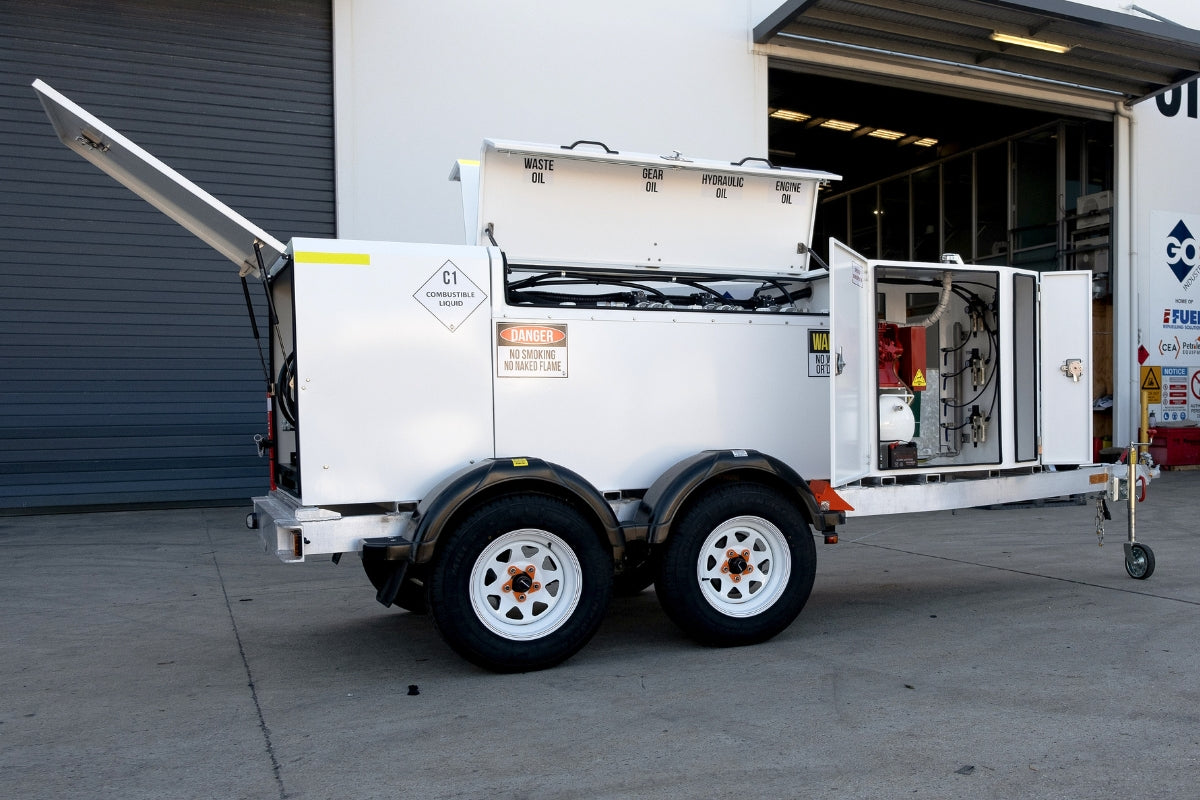

> Chassis - Lightweight, heavy duty aluminium, dual axle chassis with 7 Leaf Spring Roller / Rocker suspension system
> Lighting - LED Multi-Volt (12-24V ADR Approved) Trailer Lighting
> Trailer Hitch Options - choice of Hitch assemblies including 50mm Ball, Tregg, Pintle Ring
> Waste Oil Filter Drain - fully bunded waste oil filter drain mesh assembly including pour point into the dedicated waste oil compartment.
> Coolant - 304 stainless steel dedicated coolant storage and dispensing functionality
> Jockey Wheel - Heavy Duty Swing-away Jockey Wheel

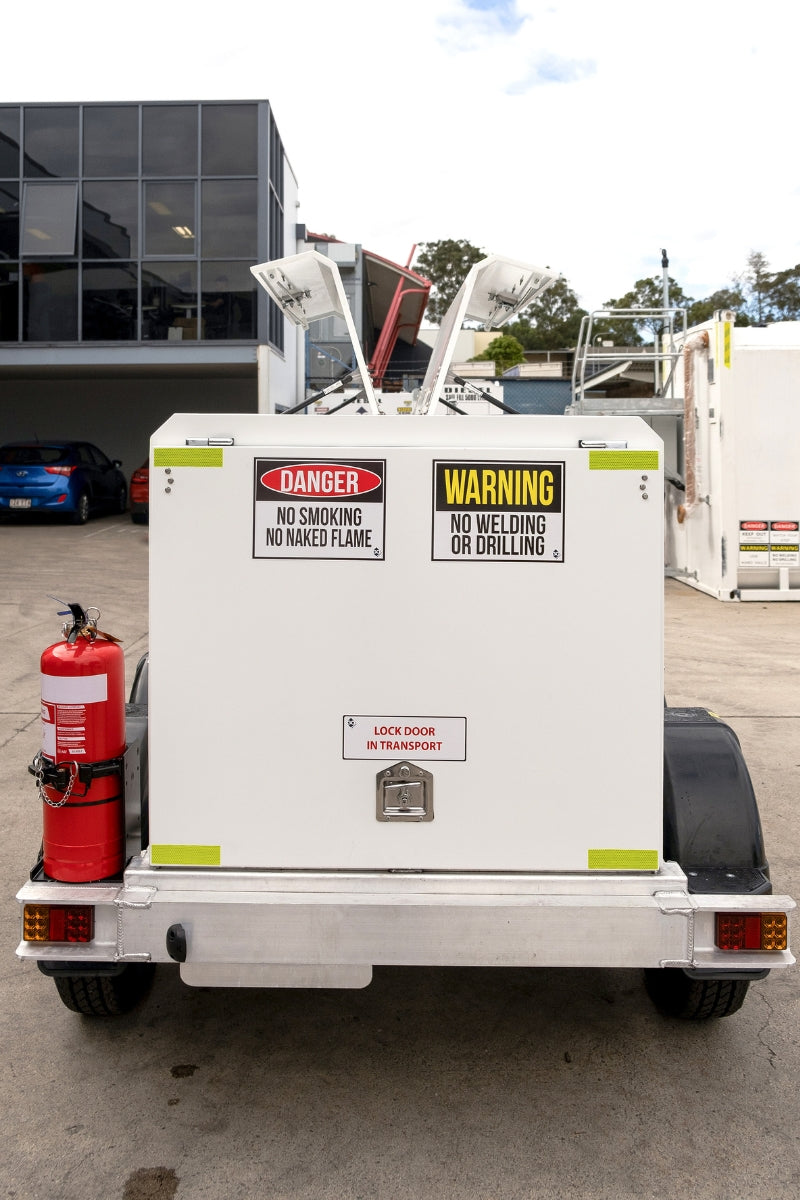

> Fire Protection - 4.5kg Fire extinguisher
> Drop Down Supports - rear drop down supports for trailer stability when the trailer is not connected to a vehicle
> Tow and Leave - the CEA Petroleum Equipment Self Bunded Service Trailer can be towed to your designated servicing location, un-hitched and used as mobile workshop to provide convenient in field servicing.
