PUMP 240V AC KIT 60LPM DT6A04AAUSM61 Adam by Piusi

PUMP 240V AC KIT 60LPM DT6A04AAUSM61 Adam by Piusi

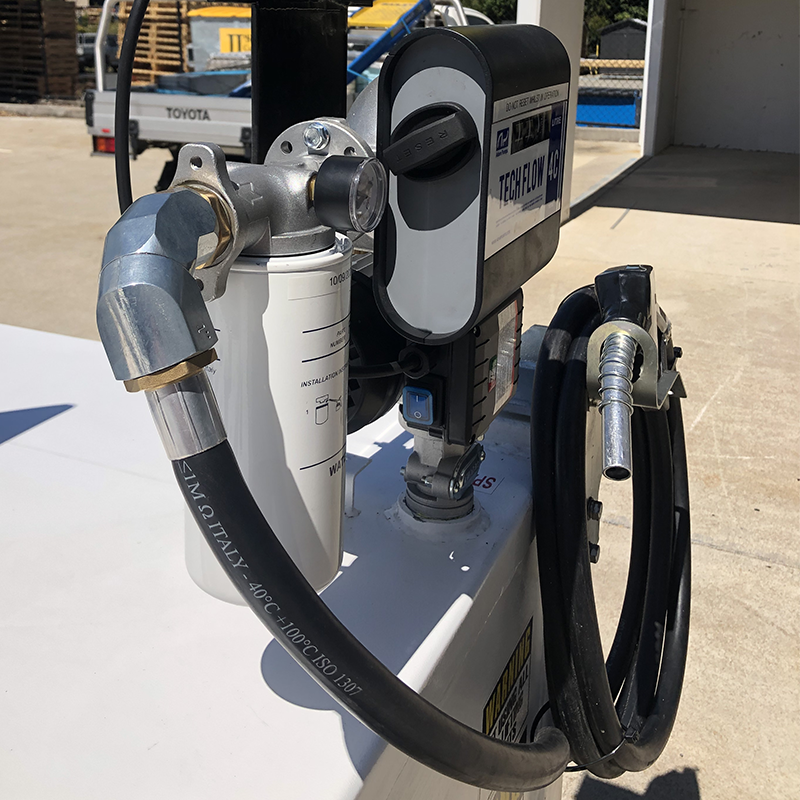

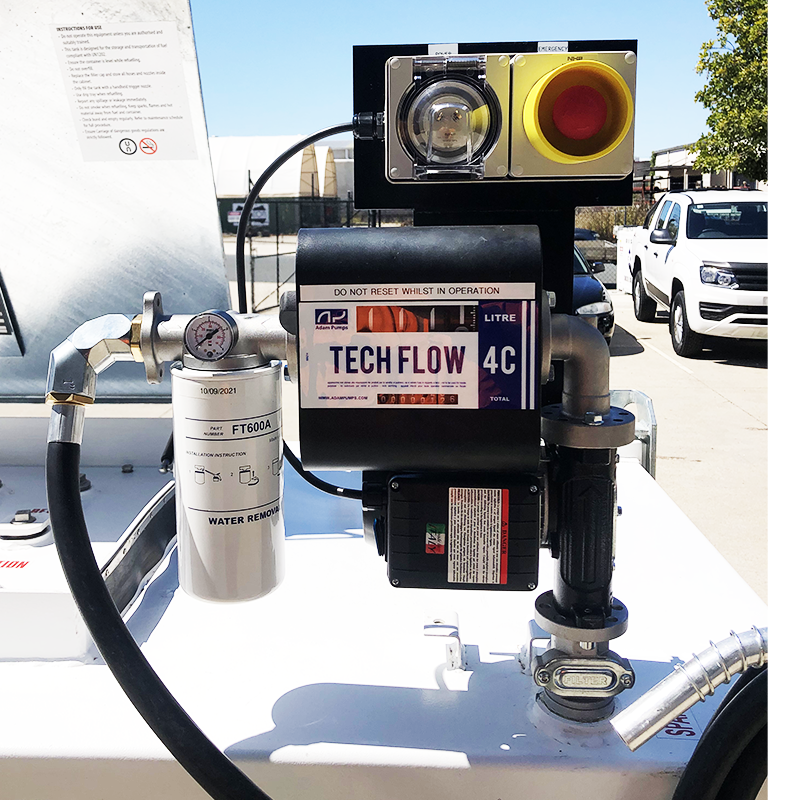

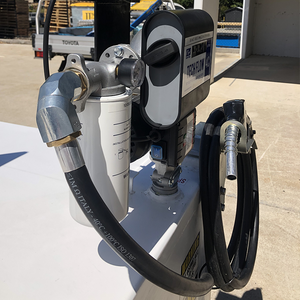

Designed and manufactured by Adam Pump, a Piusi group company, in Italy.  Plug and Play Pump Kit for use with Self Bunded Tanks, Single Wall Tanks and Drums.

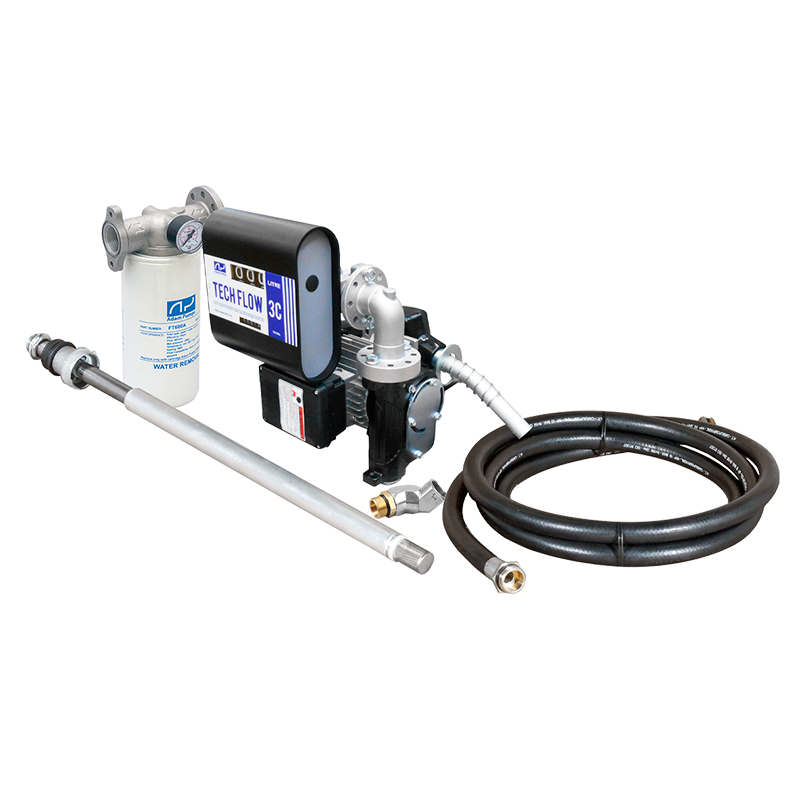

What's in the Box ?

This kit comprises the following components:

• SUCTION SPEAR - Telescopic Suction Spear and Drum / Tank Adaptor,
• PUMP - 240V AC 70lpm PA1 Pump,
• FILTER - FT10XA Particulate / Water Filter with pressure gauge,
• METER - 3 Digit Mechanical Meter,
• HOSE - 6m x 19mm ID Hose Scr Male BSP Ends,
• SWIVEL - Dual Plane Swivel,
• NOZZLE - Auto Shut Off Nozzle

Pump Information

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the PA1 240V 70lpm Pump, from CEA Petroleum Equipment, features a self-ventilated single phase, continuous duty  motor with IP55 protection, class F insulation and thermal overload protection engineered into the electric motor.

Pump Features

• 240V AC - 2.4 amp
• Package dimension 290mm x 190mm x 210mm - 8.5kg
• Self-priming vane pump
• cast iron body
• sintered steel impeller
• acetal resin vanes
• integrated by-pass valve
• integrated stainless steel filter
• easily accessible ON-OFF switch,
• self-ventilated single phase motor
• IP55 protection
• class F insulation
• thermal overload protection engineered into the electric motor
• flow rate 70 l/min
• input/output 1”F BSP
• suitable for use with diesel fuel
• continuous duty design.

Filter Information

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the FT10XA Filter Kit, from CEA Petroleum Equipment, provides 30um Particulate and Water Filtration and is suitable to use in a diesel dispensing application up to 100lpm.  This filter kit features a Saturation Level Indicator Pressure Gauge

Filter Features

• DN25 (1") Female BSP Inlet and Outlet
• 30um Particulate and Water Removal
• Flow Direction Cast on the Housing
• Saturation Level Indicator Pressure Gauge
• Flow Rate up to 100lpm
• Package Size 290mm L x 190mm H x 250mm W - 2.5kg

Meter Information

The TF3S1 3 Digit Mechanical Meter, from CEA Petroleum Equipment, is supplied with nutating disk for the high precision measurement of diesel fuel. The Meter is fitted with a totaliser, a counter, and a side knob for resetting the counter.  The fuel outlet direction can be adjusted according to the application at hand.  The Meter is also fitted with a calibration screw for precision adjustment. The meter can be mounted on electric pumps or used in gravity applications.

Meter Features

• made in Italy by Adam Pump, a Piusi Group Company
• partial 3-digit
• total 8-digit
• flow rate 20-120 l/min
• input/output 1? F BSP
• precision ± 1% >
