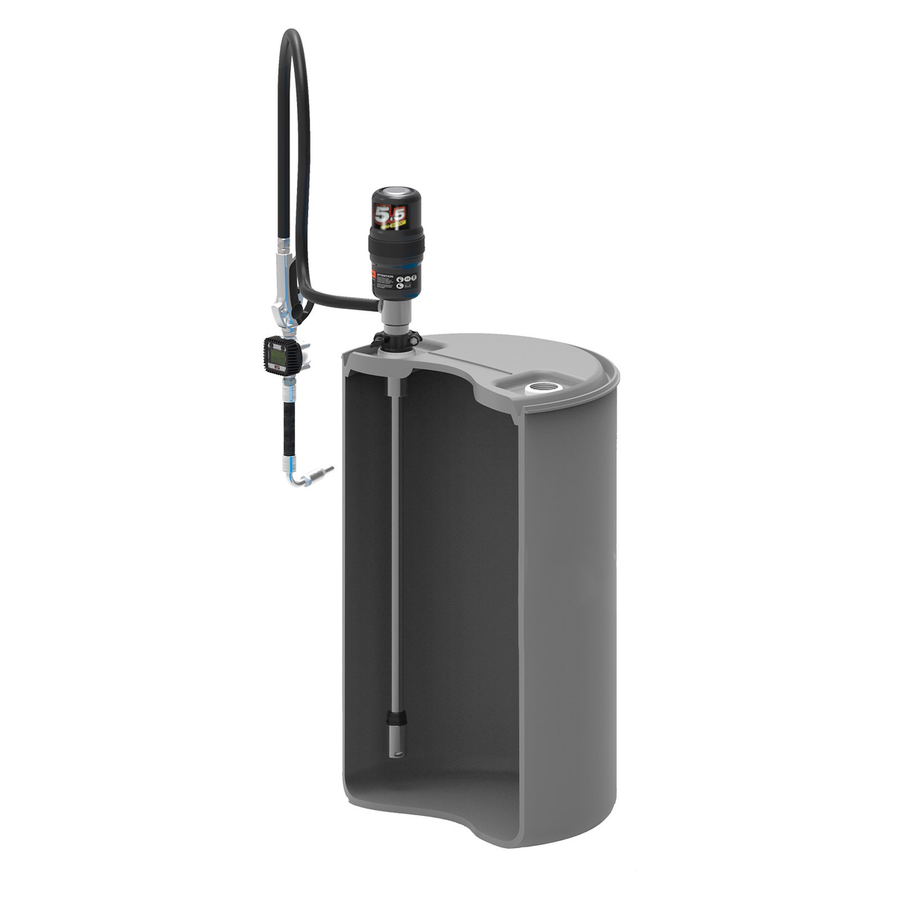

Piusi 205L Oil Drum Pump Kit with 5m Hose and Metered Nozzle

	CEA Data Sheet Piusi 205L Oil Drum Pump Kit
	CEA Manual Piusi 3.5:1 & 5.5:1 Pneumatic Pumps
	CEA Manual Piusi EASY K400 Metered Nozzle

Overview

This Piusi Oil Drum Pump Kits are oil dispenser units suitable to transfer medium/high viscosity lubricants. Available in two pump options: P3.5:1 940 which is suitable for transferring medium viscosity oil over short distances, and P5.5:1 940 which is suitable transferring over medium distances.

The kit also includes the Piusi EASY K400 metered nozzle and 1/2" diameter 5m hose.

*Drum in photo is for illustration purposes only and is not included.

Key Features

• Double effect pump
• Heavy duty
• Ready to use
• Compact design

Performance

• Up to 21.5 litres per minute
• 3-8 BAR operating pressure
• +/- 0.5% accuracy
• Accommodates mid-high fluid viscosity

Specifications

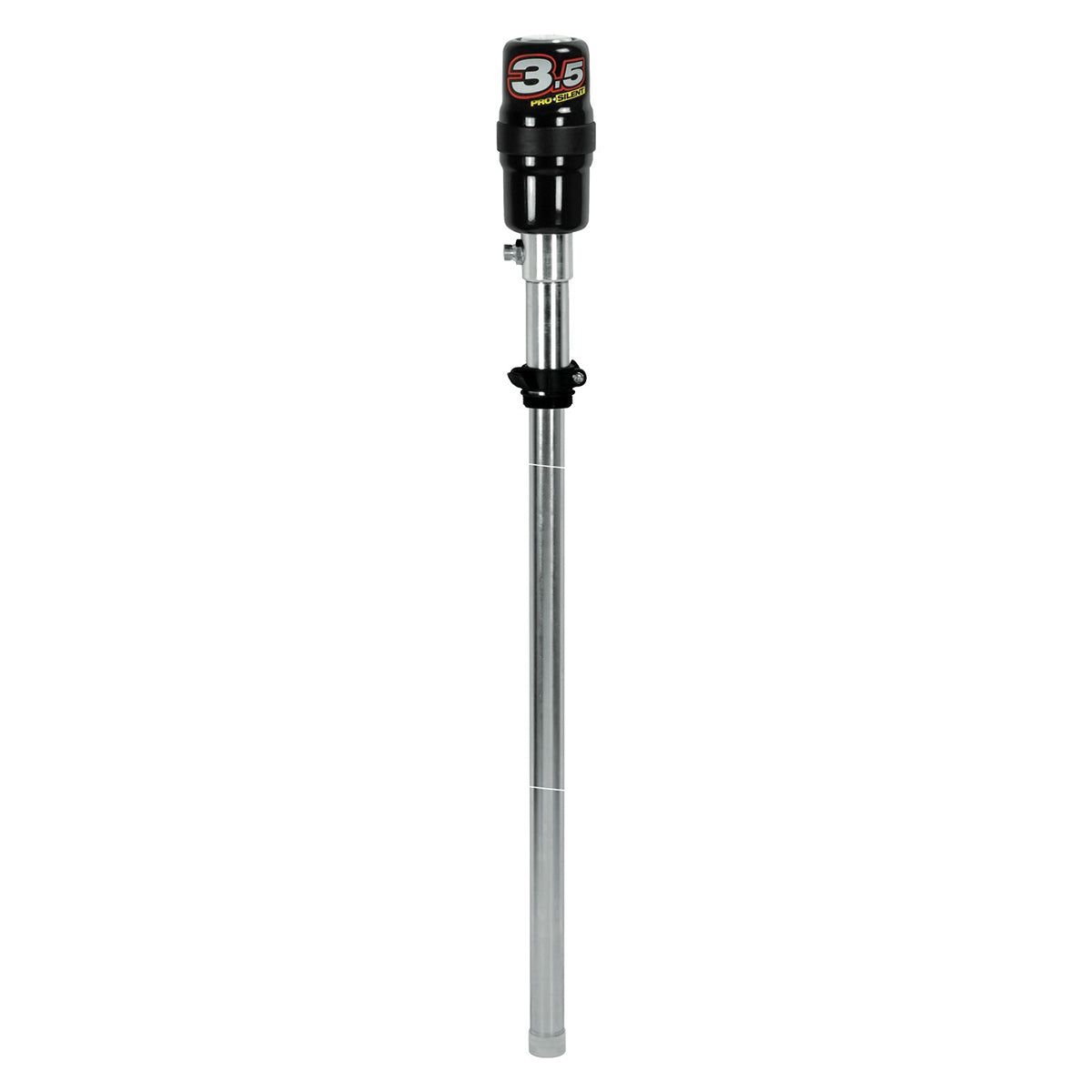

P3.5:1 Pump

• Technopolymer Air Motor
• Die Cast Steel Body
• NBR Seal
• Up to 21.5 litres per minute
• 3-8 BAR air pressure
• Accommodates mid-high fluid viscosity
• Below 77db noise level

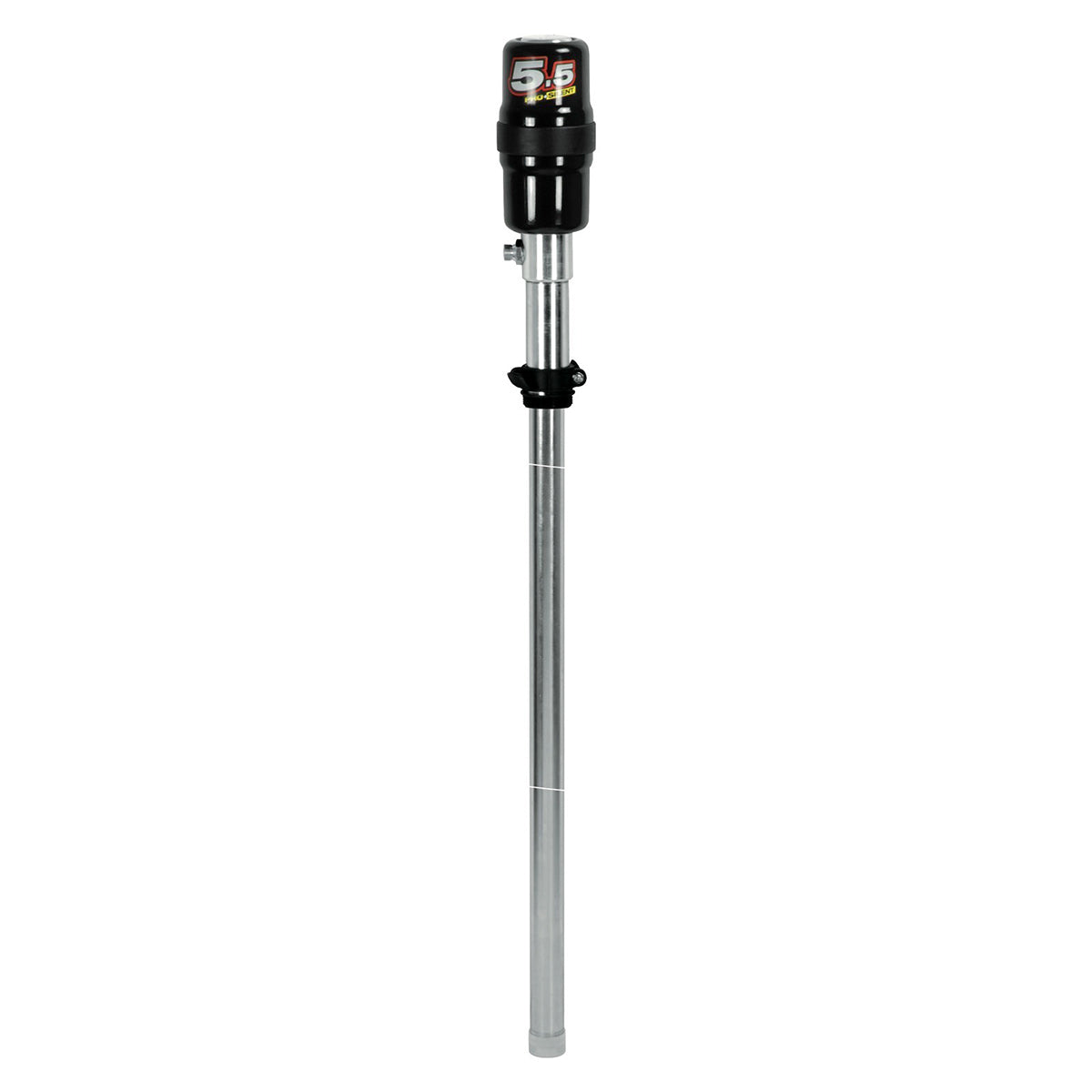

P5.5:1 Pump

• Technopolymer Air Motor
• Die Cast Steel Body
• NBR Seal
• Up to 15.5 litres per minute
• 3-8 BAR air pressure
• Accommodates mid-high fluid viscosity
• Below 77db noise level

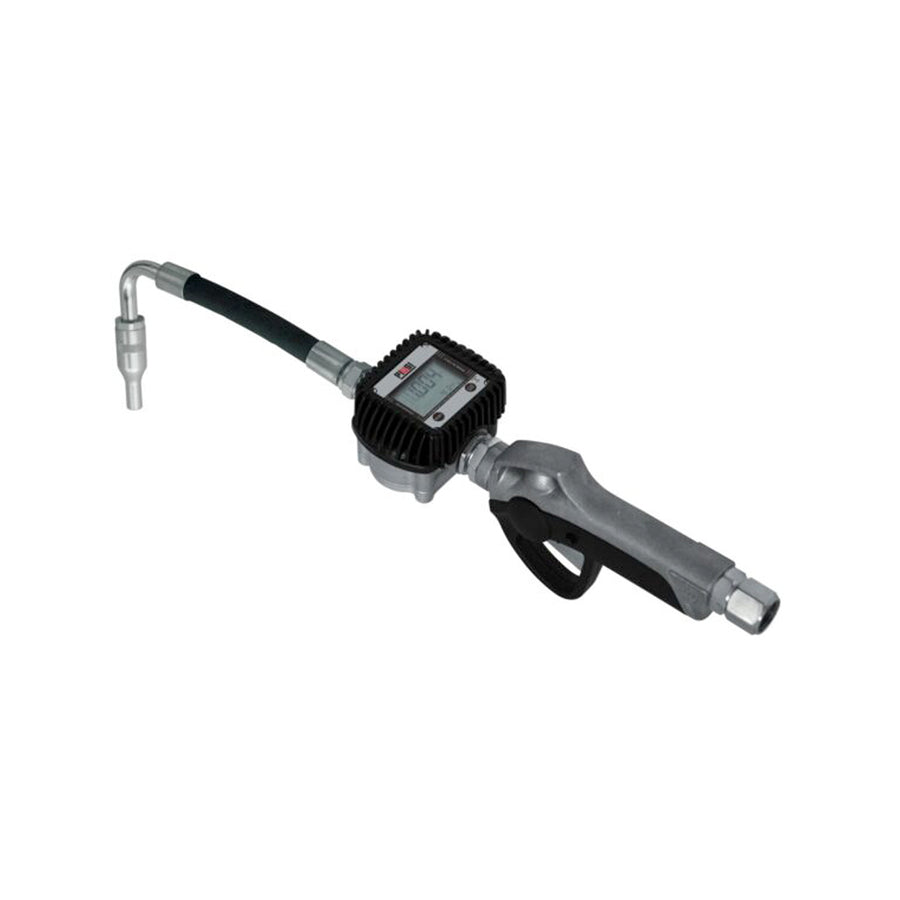

EASY K400 Metered Nozzle

• Aluminium Nozzle Body
• Nickel Plated Steel brass NBR Valve
• Aluminium Metered Body
• Technopolyme Gears
• Up to 30 litres per minute
• 70 BAR operating pressure
• Accommodates up to 2000 CST viscosity
• +/- 0.5% accuracy
