Macnaught RAPIDFLO™ Rotary Fuel Pump GT-01

Macnaught RAPIDFLO™ Rotary Fuel Pump GT-01

	USER MANUAL
	DATA SHEET

The GT RAPIDFLO™ is a rotary action pump suitable for transferring diesel, ULP, aviation fuels, kerosene & light oils (up to SAE30).

The RAPIDFLO™ is capable of transfer rates of 800ml per revolution (up to 100L/min depending on viscosity) from 60 - 205L drums and tanks. The pump is easy to prime and is capable of fluid delivery in both directions.

The RAPIDFLO™ is supplied with a 3-piece suction tube, pump handle, 2" bung adaptor and 2.4m anti-static delivery hose.

The RAPIDFLO™ is also suitable for users who either cannot use an electric fuel pump for safety reasons or do not have access to power in remote locations.

It can be used to transfer AV-Gas* and Jet A1 although users of aviation fuels must check material compatibility with the fuel product they are using.

Package Includes

• RAPIDFLO™ pump
• 2.4m anti-static rubber delivery hose
• Three piece suction tube
• Built-in 2" sliding bung adaptor

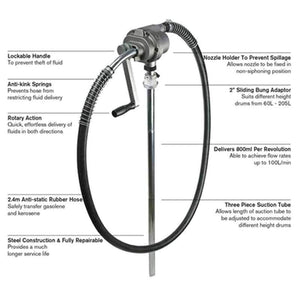

Features & Benefits

• Rotary action pump incorporating a gearbox for high output and easy operation - Ideal for high volume fuel transfer
• Delivers 800ml per revolution - Able to achieve flow rates up to 100L/min (in both directions)
• 2.4m anti-static rubber hose - Suitable for pumping petrol, diesel and kerosene
• Built-in 193 micron strainer - Protects your fleet from fuel contamination
• Built-in nozzle holder - Allows nozzle to be fixed in non-siphoning position
• Lockable handle - For added security when pump is unattended
• Three piece suction tube - Allows length of suction tube to be adjusted to accommodate different height drums
• Built-in 2" sliding bung adaptor - Suits different height drums from 60L - 205L
• Robust aluminium housing screwed together - For ease of service and maintenance
• Anti-kink springs - Prevents hose from restricting fluid delivery
• Fully repairable - Provides longer service life
• Optional (HA-01) 10 micron fuel filter available - For extra protection in fuel deliveries
• Optional (HNU) Fuel Nozzle - Suitable for transferring ULP and diesel

Technical Specifications

• Suitable for 60L - 205L drums
• Delivers 800ml per revolution (Up to 100L/min)
• 2.4m anti-static rubber delivery hose
• 3/4" BSP threaded pump outlet
• Suitable for use with diesel, ULP, kerosene and oils (up to SAE30)
• Wetted components: aluminium, steel, zinc, nitrile rubber and viton

Repair Kits

• GP-1K: Body Set
• GM-1K: Service Kit
• GR34S: Bung Adapter Set
